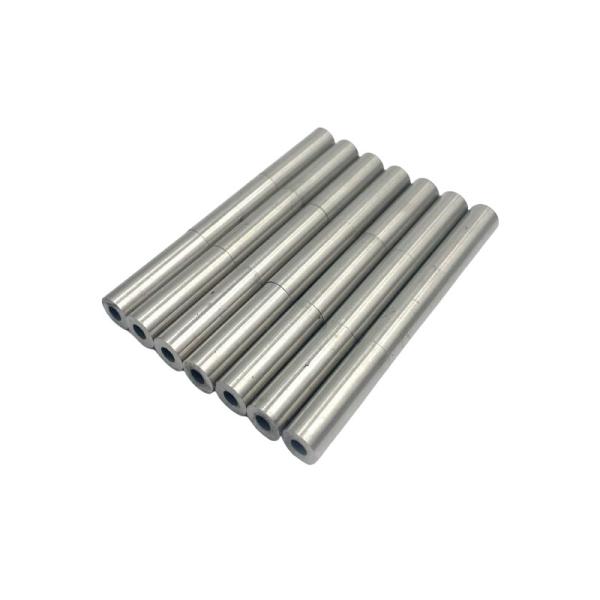

Radial Magnetized Alnico Magnet For Generator Use With 550℃ Max Operating Temperature
Product Description:
Alnico Permanet Magnet is a kind of cast Alnico magnet which is made of aluminum, nickel, cobalt and iron alloy. It is widely used in various applications such as generator, microphone, measuring instrument, etc. It can be customized in size, shape and material. The Hcj of Alnico Permanet Magnet is ≥30 KA/m, and the material of Alnico Permanet Magnet is Alnico 5, Alnico 8 and Alnico 5 Magnets, which provide superior magnetic properties. It is known for its excellent temperature stability, corrosion resistance and can be used in a wide temperature range. Besides, it is also known for its strong magnetic field and is widely used in various industries.
Features:
- Product Name: Alnico Permanet Magnet
- Application: Generator, Microphone, Measuring Instrument
- Magnetization Direction: Axial, Radial, Multi-poles..
- Material: Alnico, Alnico9, Alnico5
- Shape: Customized
- Hcj: ≥30 KA/m
Technical Parameters:
Physical Properties
| Parameter Name | Value |
| Cruie Temperature | 760 ~ 890℃ |
| Max. Operatin Temperature | 450 ~ 550℃ |
| Resistivity | 47 ~ 54 μ Ω.cm |
| Hardness | 520 ~ 630 HV |
| Density | 6.9 ~ 7.3 g/cm³ |
| Relative Recoil Permeablility | 1.7 ~ 4.7 μrec |
| Saturation Field Strength | 2.7 ~ 6.3 kOe / 215~500 kA/m |
| Temperature Coefficient of Br | -0.025 ~ -0.02%/℃ |
| Temperature Coefficient of iHc | +0.01 ~ +0.03 %/℃ |
Applications:
UNMAG Alnico Permanet Magnet
UNMAG Alnico Permanet Magnet, made in China, can be customized in shape and size. It is made of Alnico, a material with high strength and stability, and its max operating temperature is 550℃. It is widely used in generator, microphone, measuring instrument and other fields.
- Brand Name: UNMAG
- Place of Origin: China
- Shape: Customized
- Max Operating Temperature: 550℃
- Application: Generator, Microphone, Measuring Instrument
- Size: Customized
- Material: Alnico
UNMAG is a professional manufacturer of Alnico Rod Magnet and Alnico Magnet, especially LNG37. Its Alnico Permanet Magnet is widely used in generator, microphone, measuring instrument and other fields for its high magnetism, stability and corrosion resistance. It is the choice for seeking excellent performance to cost ratio.
Customization:
Customized Alnico Permanent Magnet by UNMAG
Brand Name: UNMAG
Place of Origin: China
Hcj: ≥30 KA/m
Material: LNG37, Cast Alnico Magnet, LNG37 Alnico Magnet
BHmax: 1.13-9 MGOe
Max Operating Temperature: 550℃
Shape: Customized
Support and Services:
Alnico Permanent Magnet technical support and service are available to help customers find the best solutions for their needs. Our team of experienced professionals can provide expert advice on product selection, installation, maintenance and troubleshooting. We also offer comprehensive product testing in our state-of-the-art laboratory and can provide custom-made solutions to meet your specific requirements. Our team is committed to ensuring you get the best quality products and services, and strive to exceed your expectations.
Packing and Shipping:
Packaging and Shipping
Alnico Permanent Magnets are shipped in protective packaging, such as cardboard boxes, plastic bags, or other containers depending on the size and shape of the magnets. The magnets should be placed carefully and firmly in the packages to prevent any damage during transit.
In order to ensure timely delivery, Alnico Permanent Magnets should be shipped using a reliable courier service with tracking services enabled. This will ensure that the magnets arrive safely and on time.
