Customized High Quality Round Permanent Neodymium Pot Magnet
Product Description:

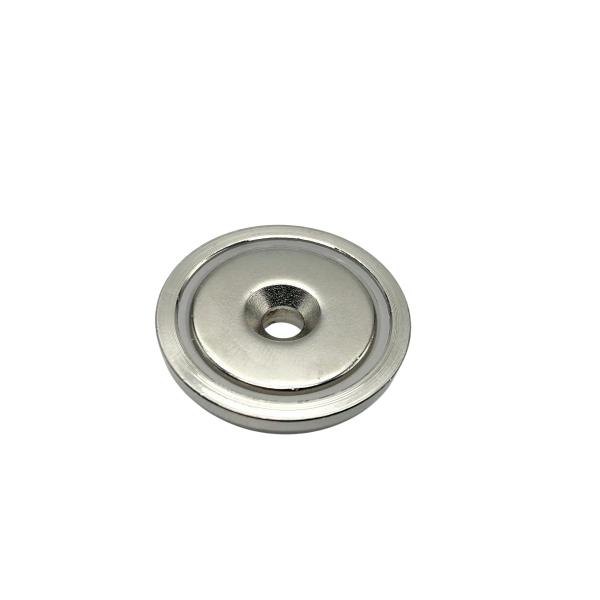

Pot Neodymium Magnet
The Pot Neodymium Magnet is a versatile and powerful mounting magnet made from Neodymium (NdFeB) material, designed to be used in a variety of applications. It offers excellent performance and high reliability, with MOQ of 100 Pieces and Tolerance of ±0.1mm. The Pot Neodymium Magnet is available in various grades, ranging from N35 to N52, and its Disc shape makes it easy to mount in different locations.
These Pot Neodymium Magnets are widely used in a variety of industries, ranging from metalworking to manufacturing. Thanks to their strong magnetism, they can be used for a variety of purposes, including lifting, clamping, and holding. With excellent performance and reliable quality, Pot Neodymium Magnets are the perfect choice for your application.
Features:
- Product Name: Pot Neodymium Magnet
- MOQ: 100 Pieces
- Grade: N35-N52
- Packaging: Carton Box
- Tolerance: ±0.1mm
- Magnetic Direction: Thickness, Axial..
- Features: Neodymium Pot Magnets, Shallow Pot Magnet, Pot Magnet with Countersunk Hole, Pot-Base Magnetic Assemblies
Technical Parameters:
| Model | D (mm) | D1 (mm) | D2 (mm) | H (mm) | Hole Degree | Strength (kg) |
| UN-A16 | 16 | 3.5 | 6.5 | 5 | 90° | 5 |
| UN-A20 | 20 | 4.5 | 8.6 | 7 | 90° | 6 |
| UN-A25 | 25 | 5.5 | 10.5 | 8 | 90° | 14 |
| UN-A32 | 32 | 5.5 | 10.5 | 8 | 90° | 25 |
| UN-A36 | 36 | 6.5 | 12 | 9 | 90° | 29 |
| UN-A42 | 42 | 6.5 | 12 | 9 | 90° | 37 |
| UN-A48 | 48 | 8.5 | 16 | 11.5 | 90° | 68 |
| UN-A60 | 60 | 8.5 | 16 | 15 | 90° | 112 |
| UN-A75 | 75 | 10.5 | 20 | 18 | 90° | 162 |
| UN-A90 | 90 | 10.5 | 20 | 18 | 90° | 300 |
| UN-A120 | 120 | 12.5 | 20.5 | 18 | 90° | 600 |
Applications:
UNMAG Pot Neodymium Magnet: Perfect For Your Needs
UNMAG Pot Neodymium Magnets are made from the rare earth metal NdFeB, and they are the most powerful type of permanent magnet available. Our Pot Neodymium Magnets are made with a shallow pot shape, making them suitable for a variety of applications. Our Pot Magnets also have an extremely high pull force, so they can be used for a variety of industrial and commercial applications. The unique Nickel coating on these Rare Earth Pot Magnets help to keep them protected from corrosion and rust. With a MOQ of only 100 pieces and a working temperature range of -20℃ to 80℃, the UNMAG Pot Neodymium Magnet is the perfect choice for your mounting needs.
Customization:
Customized Pot Neodymium Magnet
Brand Name: UNMAG
Place of Origin: China
Product Name: Pot Neodymium Magnet
Packaging: Carton Box
Size: Customized
Material: Neodymium
Working Temperature: -20℃ To 80℃
Keywords: Neodymium Pot Magnets, neodymium pot magnets, Pot Magnet, Pot Neodymium Magnet
Support and Services:
We provide technical support and service for our Pot Neodymium Magnet products. Our technical support team is available to answer any questions you may have while using the product. Our customer service team is available to assist with any issues that may arise during the product's lifetime. We strive to provide quality customer service and support to ensure that our customers have a positive experience with our products.
